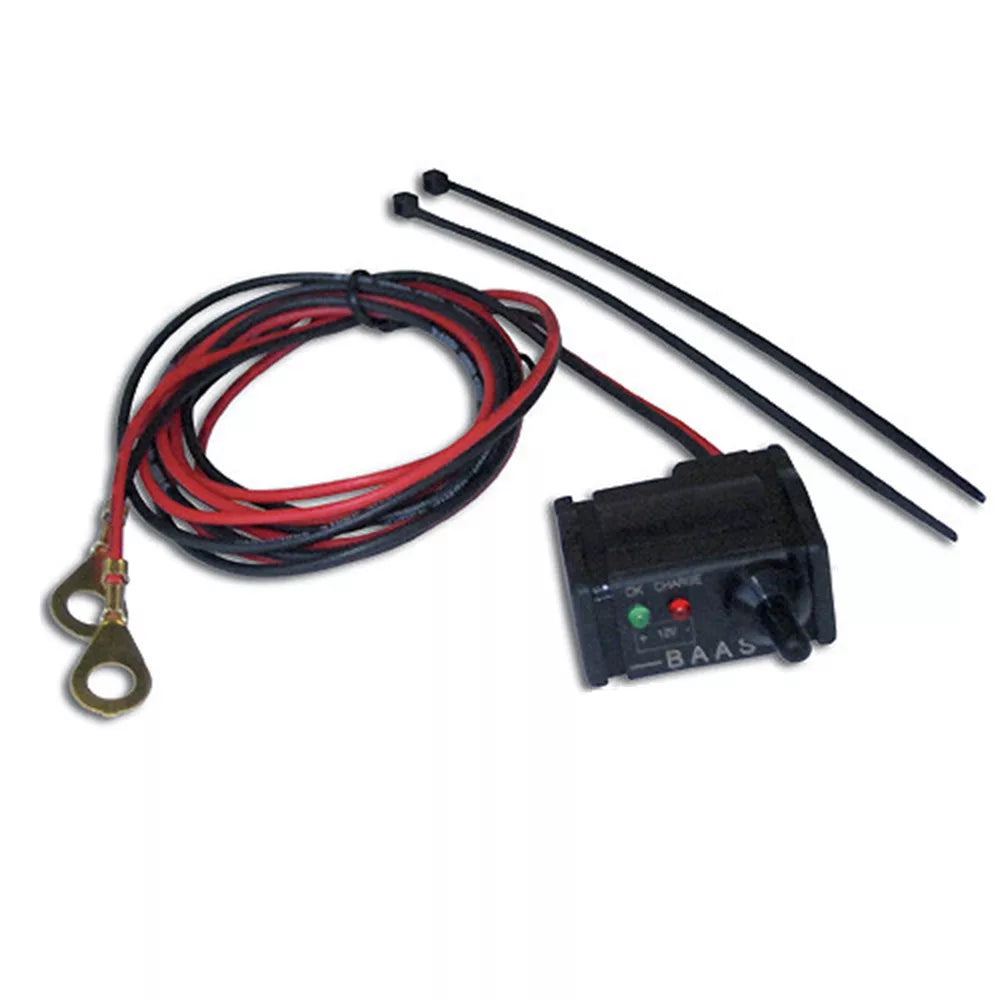

Battery Voltage Tester (12v) Handlebar Mounted

Ideal for any vehicle that is not regularly in operation. The battery status can be interrogated at any time without switching on the vehicle electrical system.

A battery checker for permanent installation in the vehicle. Since it works only at push-button pressure, it does not need any current or loads the vehicle battery.

The microprocessor signals the following LED states:

• continuously green (from 12.7 V): well charged
• green flashing (12.5-12.7V): still sufficiently charged
• red / green (12.4-12.5 V): slowly recharge or drive
• red flashing (12.2-12.4 V): urgently load, possibly starting problems
• constantly red (up to 12,2V): absolutely charge, battery starts to sulfate

The tester is intended for universal mounting on the pipe rod or on the handlebar with enclosed cable ties.

• The cable ties are integrated into ducts of the cast housing.
• Waterproof overmoulded housing
• Dimensions: L x W x H 360/16/29 mm
• Cable: 1.2m
• Housing: material hotmelt, water tightness IP46
• Display accuracy: +/- 1-2%
